KSB gate valve suppliers in Pune
KSB gate valve suppliers

Our Association

We are an authorised distributors of Agru, Ashiward by aliaxis, and KSB Valves.

KSB Forged/Cast Steel Gate Valves dealer in Pune, Maharashtra

 KSB Gate Valve

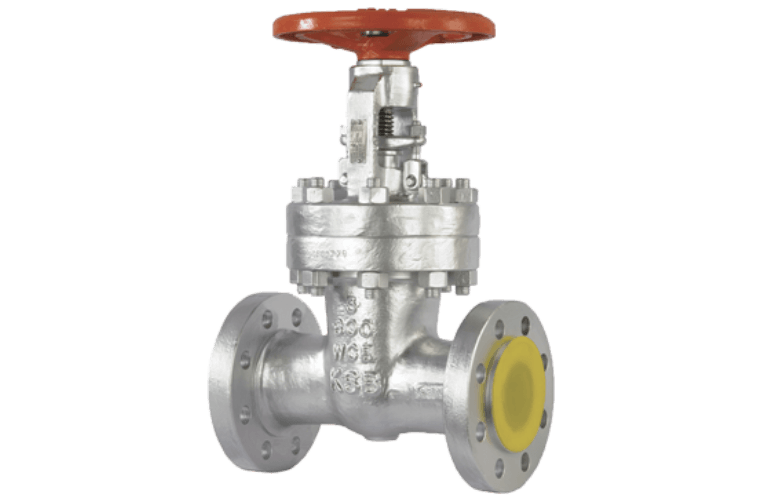

GATE VALVE CLASS = 150-300-600

Exclusive distributor of KSB Gate valves dealer in Pune

Technical specifications
Size: 50 to 600mm
Pressure: Up to 104 bar
Temperature: Up to 593° C
 KSB Gate Valve Supplier

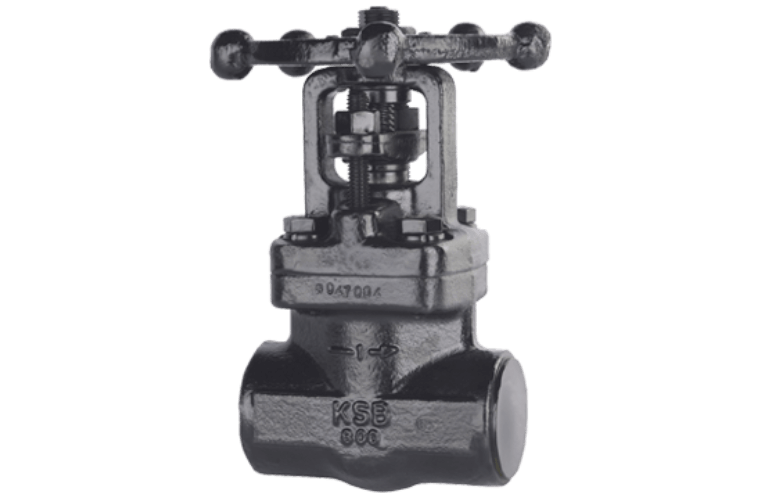

GATE VALVE CLASS = 800-1500-2500

Technical specifications
Size: 15 to 50mm
Pressure: Up to 264 bar
Temperature: Up to 593° C
KSB Gate valves supplier in Pune

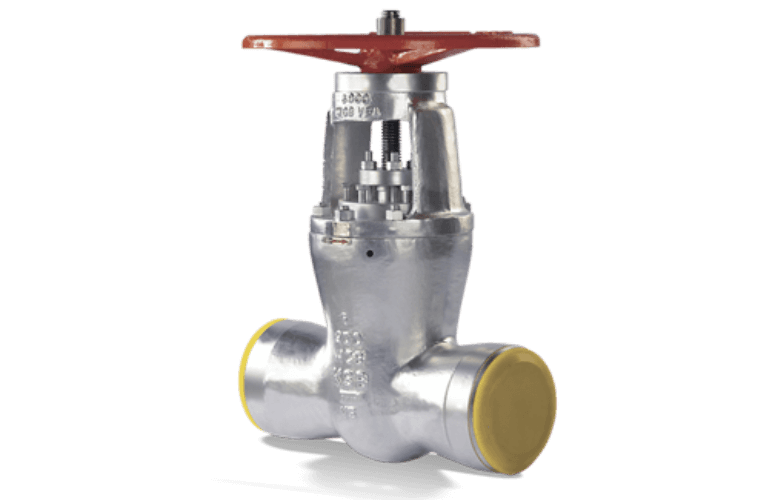

GATE VALVE CLASS = 900-1500-2500-3100-3600

Technical specifications
Size: 50 to 600mm
Pressure: Up to 431 bar
Temperature: Up to 650° C

KSB Forged/Cast Steel Gate Valves trader in Pune 2023

KSB Forged/Cast Steel Gate Valve - Leader in Industrial Valves

DeltaFlow is a reputed brand in Pune who are solely KSB gate valves supplier in Pune and trader of KSB 2/4 inch gate valve, water gate valve, electric gate valve, steam gate valves etc across Maharashtra. We have more than 1000 clients spread all over who prefers KSB Valves. KSB focuses primarily on industrial valves and with that slowly and steadily expansion strategy it has as of now presence in more than 100 countries.

Also known as Sluice Valve, KSB Gate valve dealer in Pune is one of the type of Valves which is operated and opened on lifting of rectangular gate or wedge out of the path of flow of liquid. KSB Gate Valves are purposely used for preventing or permitting the flow of liquids . Gate valve price is very economical. World class KSB gate valves are supplied through an organized chain of KSB valve dealer in Pune at client doorstep.

DeltaFlow is the authorized and trusted KSB Gate valve supplier in Pune. A pune based company working for more than 21 years is now a renowned name in the field of industrial piping system. Though fabricated and manufactured fully at the manufacturer end it can be tailored made from our end also if required from client side or technical specifications any if required. The gate valve price varies from product, specifications and on client demand.

Wedge KSB Gate Valve (Type COBRA SGP/SGO/SGF): Three types of typical ksb gate valve is available in the welded Gate valve with bonnet COBRA-SGP is of Flat body COBRA-SGO is of Oval body and COBRA-SGF is with threaded ends of ISO7/1. It is very easy to inspect and drain ,applicable for drinking water due to epoxy resin coating.

Metal seated KSB Gate Valve Type - COBRA SMP Supplier in Pune

The design of KSB Gate Valve type is assigned to UNI EN 1171. The mechanism and parts include a bolted bonnet inside screw a non rising hand wheel and a two piece self aligning grand follower. Application of this type is in domestic water supply, utility piping systems, cooling circuits etc. The stem nut is madeup of nickel steel which is corrosion resistant.

  • Nominal pressure PN 16
  • Nominal size DN 40 - 300
  • Max. permissible pressure [bar] 16

Gate valve Flanged Weld - Type Ecline GT40

Bolted bonnet and a non rotating stem with external screw. It features a yoke head suitable for mounting Electric and Pneumatic actuators.

  • MAXIMUM TEMP-400DEGREE CELSIUS
  • Max Pressure- 40 Bar
  • Max size 600 DN.

KSB Gate valve to API 600-2009. It has a flexible wedge, bolted bonnet , non rotating stem and non rising hand wheel. Mainly used in boiler feed application, Refineries and petrochemical industry.

  • Nominal pressure-class-150-600
  • NPS 2inch-36inch
  • Max Temperature-1500Degree Fahrenheit.

KSB Gate valve to ANSI/ASME with flanged ends, forged steel A 105 with bolted nut outside screw and yoke.

  • Nominal size NPS ˆ½'' - 2''
  • Max. permissible pressure 104 bar / 1480 PSI
  • Min. permissible temperature 0¡ÆC / 32¡ÆF.

Gate valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW), Trim 8 (Stellite/13 % chrome steel), with bolted bonnet (Class 800) or welded bonnet (Class 1500 and 2500), outside screw and yoke, single-piece wedge.

  • Nominal size NPS ½" - 2"
  • Max. permissible pressure 431 bar / 6250 PSI
  • Min. permissible temperature 0 °C / 32 °F
  • Max. permissible temperature +538 °C / +1500 °F.

- Made up of cast iron body, flanged ends with ISO 558-14/5. Its main applications include general industry, clean water, waste water.

  • Max temperature-0-70 Degree Celsius.
  • Nominal size- 40-400 DN
  • Nominal pressure -10-25 Bar

It is a water type knife, made of grey cast iron single or two piece body and bi-directional.

  • Temp- Max120 °C
  • Nominal Size -1,200DN
  • Pressure max-10 Bar

KSB gate valves & with through-going blade, made of carbon and stainless steel, uni-directional design suitable for EN and ANSI connections. Mainly used for mining industry, sludge disposal etc.

  • Temp max-100 degree Celsius
  • Nominal Size Max-600DN
  • Pressure max- 16 Bar

Pneumatic piston actuator is mounted and design for industrial use of globe and gate valves for linear stem movement.They are very much suitable for building services, industrial plants and power stations.

  • Nominal size- Depends on piston dia.

It is corrosion resistant 17 per cent chromium steel or satellite. Mainly used in ship building, process engineering and power plants.

WATER gate valves trader in Pune

The distinct feature of Water gate valve is the surfaces between the gate and seats are planar, so this valve is often used when a straight-line flow of fluid and minimum restriction is desired. Water gate valve faces can be parallel, but are most commonly wedge-shaped.

This type of Electric gate valve is usually operated by applying voltage which opens/shutdown automatically .The gate valve price varies from product, specifications and on client demand

Steam Gate Valve in Pune, Maharashtra

Steam Gate Valve is used for passing of the steam in thermal power plant and for industrial purpose

FINOLEX INDUSTRIES Ltd. used our KSB Gate Valves

It is India leading manufacturer of PVC-U Pipes and fittings. It is the second largest manufacturer of PVC resin. KSB has been providing superior quality of KSB gate valves and all other types of valves all in its manufacturing unit across india through our competent team of sales and direct outlets.

GHARDA CHEMICALS Ltd. Used our KSB Gate Valves

Gharda chemicals has been pioneer in research activities with four manufacturing unit and made many technical innovation in the field of dye drugs, pesticides and veterinary drugs. We have been very instrumental in providing high quality assured KSB gate valves supplier in Pune since decades to its ongoing turnkey projects whenever and wherever required. Trust building relationship has always been our prima focus through on time delivery and quality products.

Popularly known as JCB is an English multinational company with headquarter in Rocester, England is known for manufacturing equipments for construction purposes ,waste handling etc. It produces over 300 types of heavy equipment. KSB has been providing all types of KSB Gate Valve to them and has been associated with it for 13 years. Being a KSB gate valves supplier in Pune we have a highly professional team of sales and services which are dedicated to the solutions of customer grievances 24*7.

Are you confused about how to choose leakage-free, non-corrosive pipelines and tanks for your industry?

We know how difficult it is to choose the right material and type of tanks and pipelines that will last for years without you having to face any trouble. Delta Flow is the number one supplier of leakage-free, non-corrosive, non-rusting thermoplastic piping design & detailing and thermoplastic tanks as per DVS standards. Our pipes and tanks can withstand heavy stress and temperature. So, contact us for the selection of material, jointing, and testing as per application 3D modeling with design for piping systems.
